Product Series: BL01 / NET01 / NET02 / NET03
Bluetooth Module
Short-range Wireless Monitoring

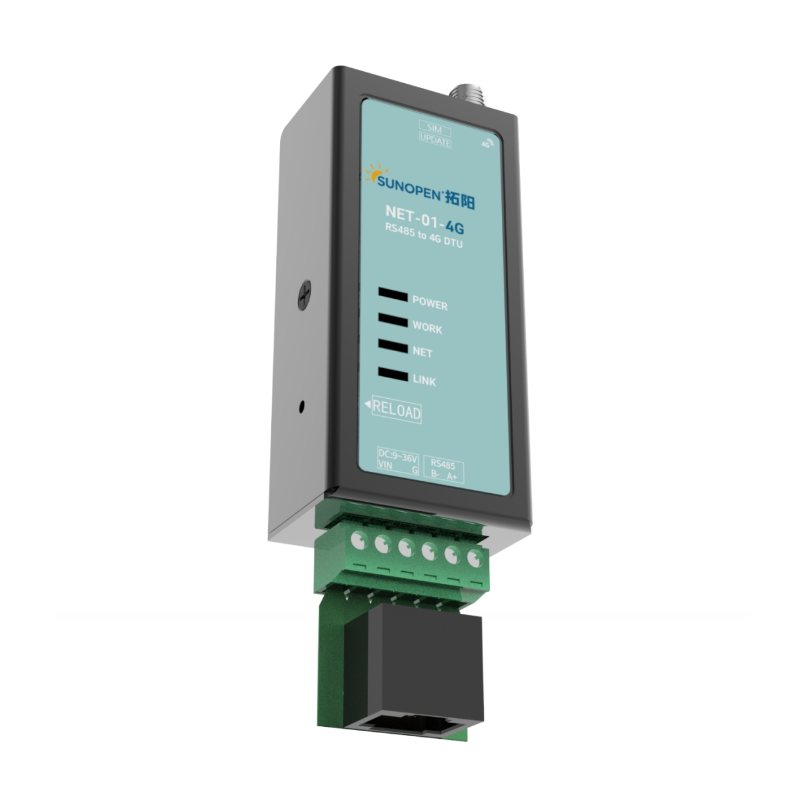

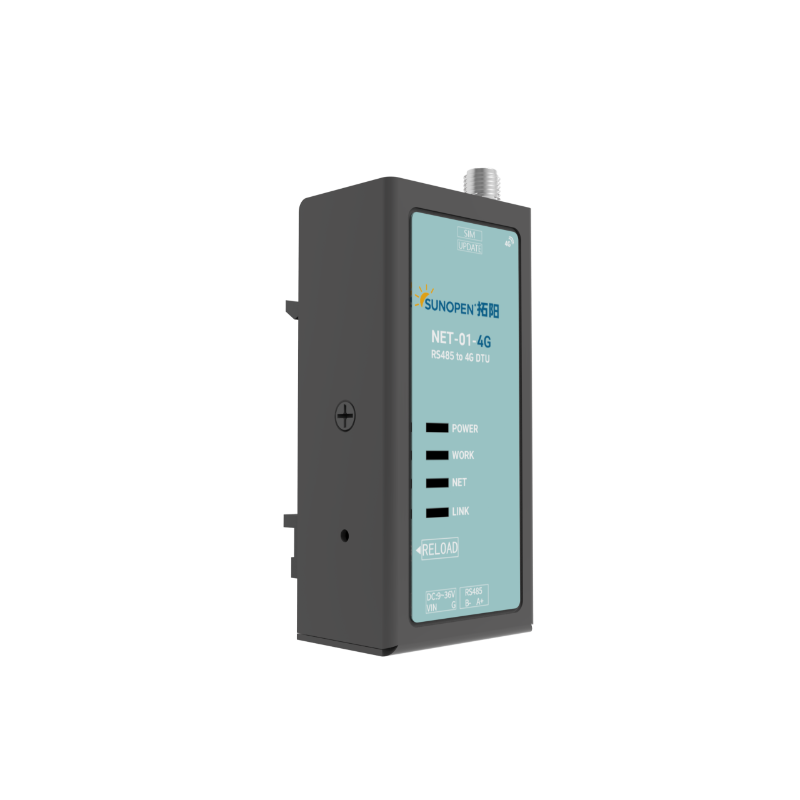

4G Module
Mobile Network Remote Monitoring

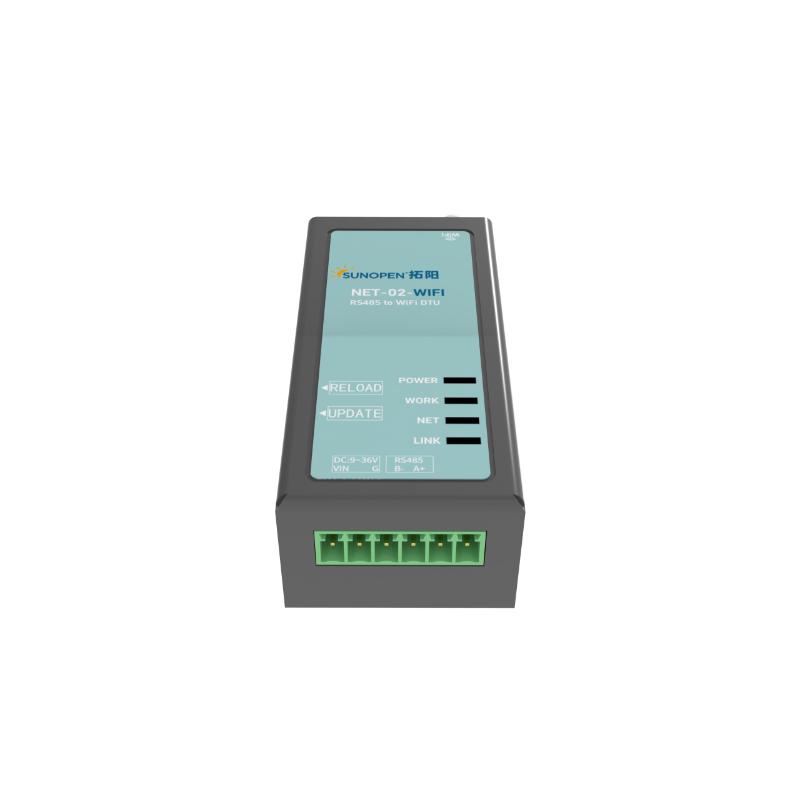

WiFi Module
Wireless Network Remote Monitoring
Ethernet Module
Ethernet Remote Monitoring
| Technical Parameter | BL01 Bluetooth Module |
NET01 4G Module |
NET02 WiFi Module |
NET03 Ethernet Module |
|---|---|---|---|---|
| Communication Type | Bluetooth | 4G Mobile Network | WiFi Wireless | Ethernet |
| Transmission Protocol | GFSK | LTE | IEEE 802.11b/g/n | Ethernet |
| Operating Frequency | 2402~2480MHz | 4G Bands | 2.4GHz/5GHz | - |
| Transmission Rate | - | 2~8 Mbps | 6 Mbps | 10 Mbps |
| Communication Range | ≤10m (open area) | Global Coverage | Depends on WiFi coverage | ≤100m |
| Input Voltage | - | 9V~36V | 9V~36V | 9V~36V |
| Standby Current | - | 10mA | 10mA | 10mA |
| Operating Current | 5mA | 30mA | 30mA | 30mA |
| Protection Rating | - | IP30 | IP30 | IP30 |
| Antenna Interface | Built-in Antenna | SMA Interface | SMA Interface | SMA Interface |
| Operating Temperature | -40°C~+85°C | -30°C~+75°C | -40°C~+80°C | -40°C~+80°C |
| Operating Humidity | - | 5%~95% | 5%~95% | 5%~95% |
| Installation Method | External | DIN Rail/Wall Mount | DIN Rail/Wall Mount | DIN Rail/Wall Mount |
| Housing Material | Flame-retardant Housing | Sheet Metal | Sheet Metal | Sheet Metal |
| Heat Dissipation | Natural Cooling | Natural Cooling | Natural Cooling | Natural Cooling |
| Dimensions | 40×40×20mm | - | - | - |
| Compatible Products | All SUNOPEN MPPT Products with RJ45 Interface | |||
Supports WeChat Mini Program, Android APK, and WEB - check device data anytime, anywhere.
Built with low-power chips, operating power consumption only 5mA, energy-efficient and eco-friendly.
Hardware and software watchdog with multiple link detection mechanisms ensure stable operation without downtime.
Full industrial design, adapts to various harsh environments, proven durability.
Supports RS485/TTL multiple communication interfaces, compatible with various industrial equipment.
Supports multiple management tools and cloud platform configuration for remote management.
Real-time monitoring of residential and commercial solar power generation systems.
Integrated into industrial automation systems for remote monitoring and control.
Achieve remote device management and maintenance via the Internet.
Integrated into smart building energy management systems.
Suitable for various IoT data transmission scenarios.
Provides remote monitoring solutions for agricultural irrigation and greenhouse equipment.
Our technical team can provide professional consultation to help you choose the right communication module solution.
